Module Information
Model: RC-TASK2-868
Description:
ASK/OOK transmitter module with Crystal oscillator.
Vdc: 2.2 ÷ 3.6Volt
Current: 21/15mA
Frequency: 868.30MHz
Power : 10dBm
Dimension: 20.32 x 11.43mm
Model: RC-TFSK3-434
Description:
433.92MHz FSK Radio Transmitter Module - Standard Pinout .
Vdc: 2.4 ÷ 3.6Volt
Current: 14.5m
Frequency: 433.92MHz
Powe : 10dBm
Dimension: 20.32 x 11.43mm
Model: RC-TFSK4-434
Description :
433.92MHz FSK Transmitter Module - Standard Pinout.
Vdc: 2.4 ÷ 3.6Volt
Current: 14.5mA
Frequency: 433.92MHz
Power : 10dBm
Dimension: 30.5 x 10.3mm
Reference Schematics
New
New
Download catalog
Follow us on :
Phone : +39 0823 522185
Mobile : +39 333 4156216
sales@radiocontrolli.com
Via Santagata 73
Centro Direzionale Contemporanea
81055 Santa Maria C.V. (CE)
ITALY
RC-DCK-433
433MHz Wireless Door Control Kit
Professional wireless door control system - 433 MHz.
Full software control, no wiring, fast installation
- No wiring between devices
- Advanced configuration via PC
- Ideal for retrofit and new installations
The RC‑DCK‑433 Wireless Door Control Kit is a professional RF solution designed to control and activate automatic doors, gates and access systems.
It eliminates wiring between control devices and automation systems, reducing installation time, costs and complexity.
Ideal for both retrofit and new installations.
✅ No wiring installation
✅ Full software configuration
✅ Maximum flexibility
✅ Reliable 433MHz RF technology
✅ Reduced installation errors
The system operates in the 433 MHz band, a well‑established standard for short and medium‑range wireless communications.
It guarantees :
- high stability
- long-term reliability
- resistance to interference.

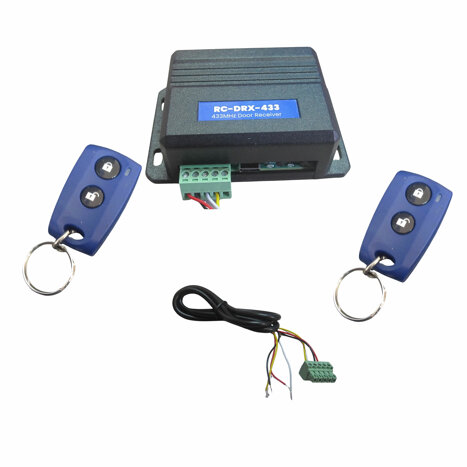

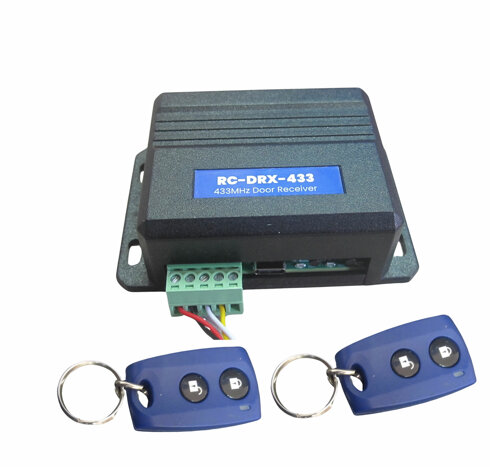

The kit includes:

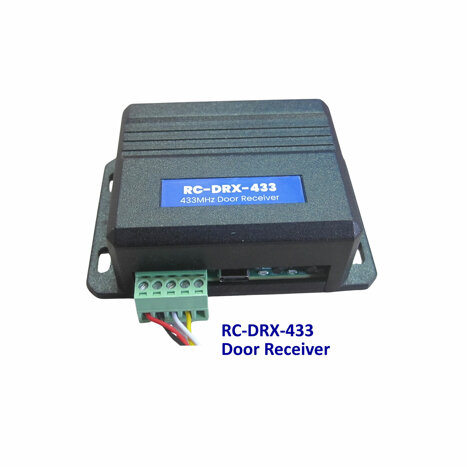

- RC‑DRX‑433 digital receiver

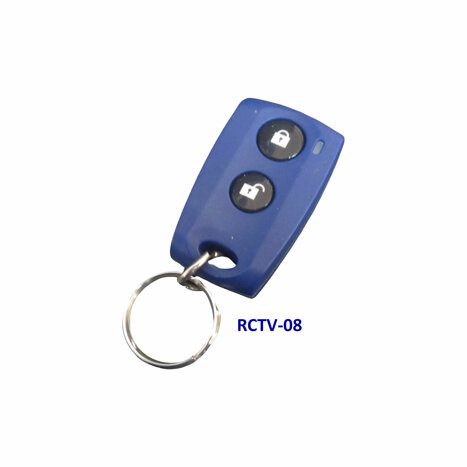

- RCTV‑08 wireless remote controls
- Connection wiring
The solution is designed to offer maximum flexibility in installation and configuration, adapting to a wide range of application scenarios.
The RC‑DCK‑433 stands out for its modern and professional approach to configuration:
Advanced software configuration
✅ Full configuration via USB‑C interface
✅ Programming through dedicated software
✅ Management of remote controls, operating modes and timing parameters directly from a PC
✅ Immediate diagnostics and system operation verification
This ensures in:
- Greater precision
- Repeatable configurations
- Reduced installation errors
- Easy maintenance and updates
Ideal solution to replace complex wired systems and drastically reduce installation time and costs.
© 2021 RadioControlli S.r.l. VAT IT03939360610 All right reserved.
Datasheet Download
Brochure Download
Configuration Software Download
APPLICATIONS
One solution, endless possibilities :
- Automatic pedestrian doors
- Accessibility systems (RTE)
- Industrial and commercial doors
- Gates and barriers
- Logistics, parking systems and automation
RELIABILITY and QUALITY
- Operating frequency: 433.92 MHz
- Stable digital transmission
- Designed and developed by Radiocontrolli S.r.l.
- Compliance with applicable RF regulations
ADVANCED OPERATIONAL FLEXIBILITY
Each button, its own logic
Each remote control can be configured independently with:
- Direct Mode
- Pulse Mode
- Continuous Mode
⏱️ Programmable delays and pulses up to 250 seconds
Ideal for:
- Multiple doors
- Timed sequences
- Interlocking systems
- Custom logic applications
DESIGNED FOR PROFESSIONAL
Not just wireless, but intelligent control
The RC‑DCK‑433 is designed for:
- Professional installers
- System integrators
- Industrial and commercial automation
Key features:
- Software‑based configuration
- Support for up to 100 remote controls per receiver
- Advanced diagnostics and system management
- Easy integration into complex systems
Product Description

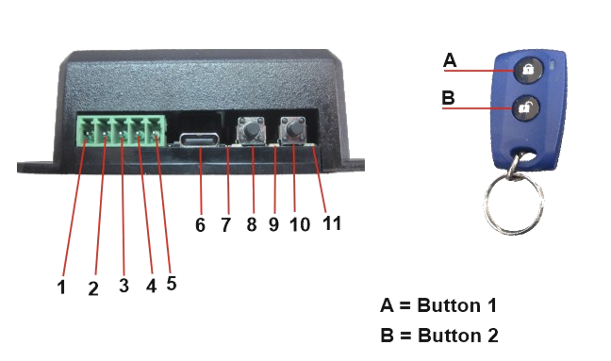

| 1 | Power Supply +12V DC/AC |
| 2 | Power Supply GND DC/AC |
| 3 | COM (Common) |
| 4 | NO (Normally Open) |
| 5 | NC (Normally Closed) |
| 6 | USB type C for configuration |
| 7 | Green Led (Each time the realy is actived, the green LED turns on and remains on for the entire activatio period. |
| 8 | Not used (for future application) |
| 9 | Blue Led (when the receiving device receives a command from the remote control), the blue LED lights up. |
| 10 | RESET |
| 11 | Red Led (when the receiving device is powered), the red LED is on. |
Technical Parameters :
1A @ 30VDC 0.5A@125VAC
100 programmed transmitters
52 x 30 x 12mm
90 x 58 x 29mm

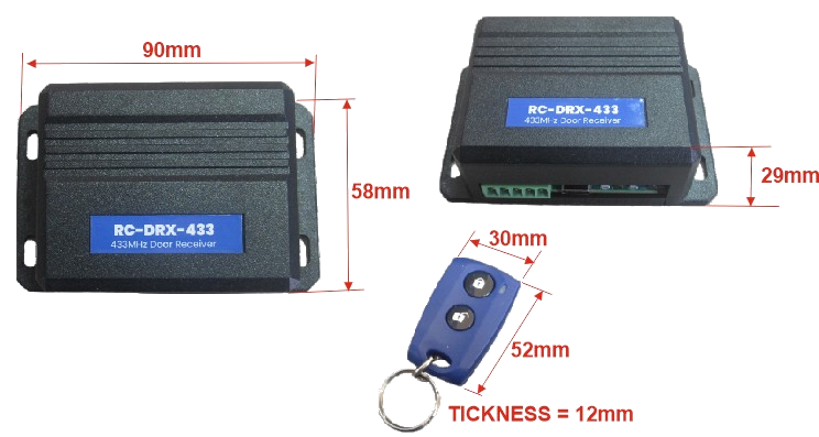

Mechanical Dimensions :
Device Operating Mode :
On each receiving device, up to 100 RCTV-08 type remote controls can be configured.
Each button of the remote control can be configured independently.
There are three possible operating modes:

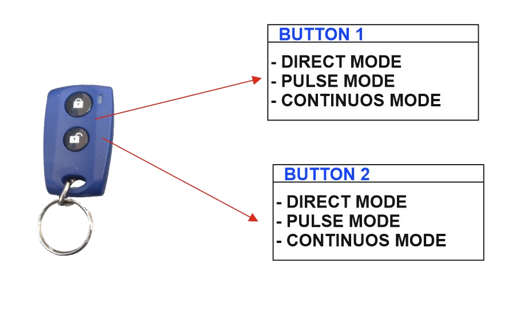

1) DIRECT MODE
2) PULSE MODE
3) CONTINUOS MODE

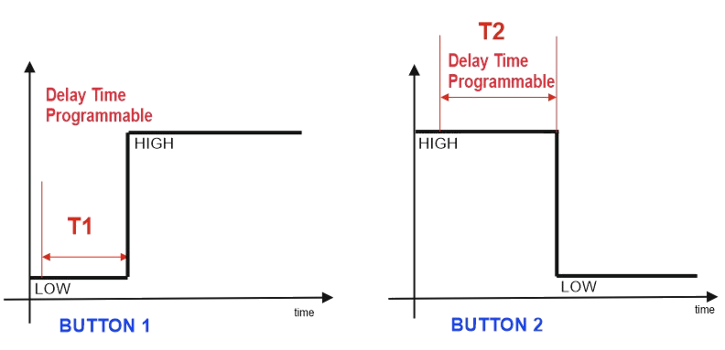

DIRECT MODE
BUTTON 1 allows the relay to be closed directly, while BUTTON 2 allows the relay to be opened.
In both cases, it is possible to program a delay for both relay activation and relay deactivation.
This delay can be set to a variable time ranging from 1 to 250 seconds.
This timing can be used, for example, to open or close a gate after a preset delay.
The two relay timing parameters can be programmed independently: relay activation time (T1) and relay deactivation time (T2).

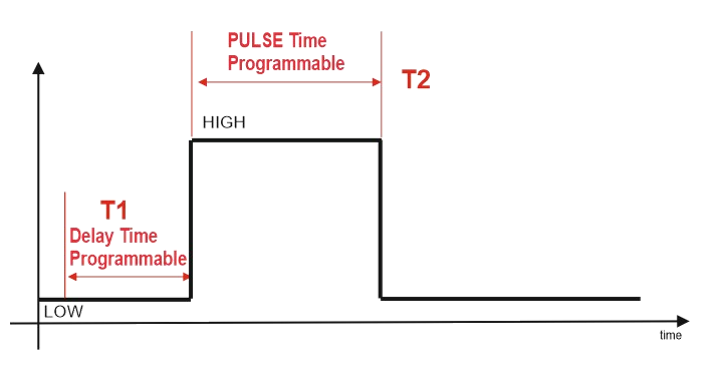

PULSE MODE
It is possible to program both the delay time T1 and the pulse time T2.
This functionality applies to both buttons on the remote control: Button 1 and Button 2.
The T1 parameter can be set from 0 to 250 seconds, while the T2 parameter can be set from 1 to 250 seconds.

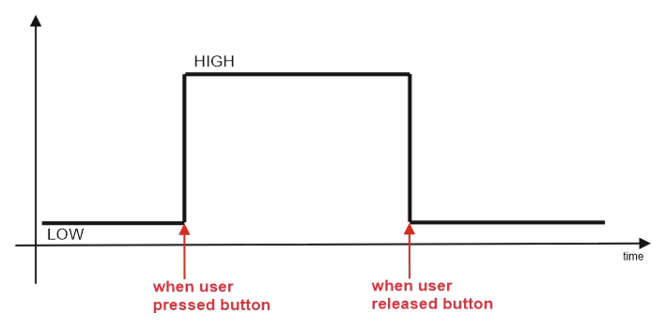

CONTINUOS MODE
In this operating mode, when a button on the remote control is pressed, the relay is activated and remains active as long as the button is held down.
Information Request:
Request information or support
Contact us to receive:
• technical documentation
• application support
• custom configurations
Our technical team will help you integrate the system into your project.
Would you be interested in :
